HDTE 200/21 electrical powered high-pressure trailer

The new, battery-powered high-pressure trailer that can compete perfectly with the diesel engine-driven variants! More than 90% emission reduction thanks to the electric drive and heat exchanger that is suitable for fossil-free fuels.

  • Modular battery system: more than competitive purchase price and flexible deployment for diverse cleaning tasks
  • Working pressure max. 200 bar
  • Water flow max. 21 L / min
  • Max. water temperature 102 ºC
  • 100% Multi-fuel heat exchanger

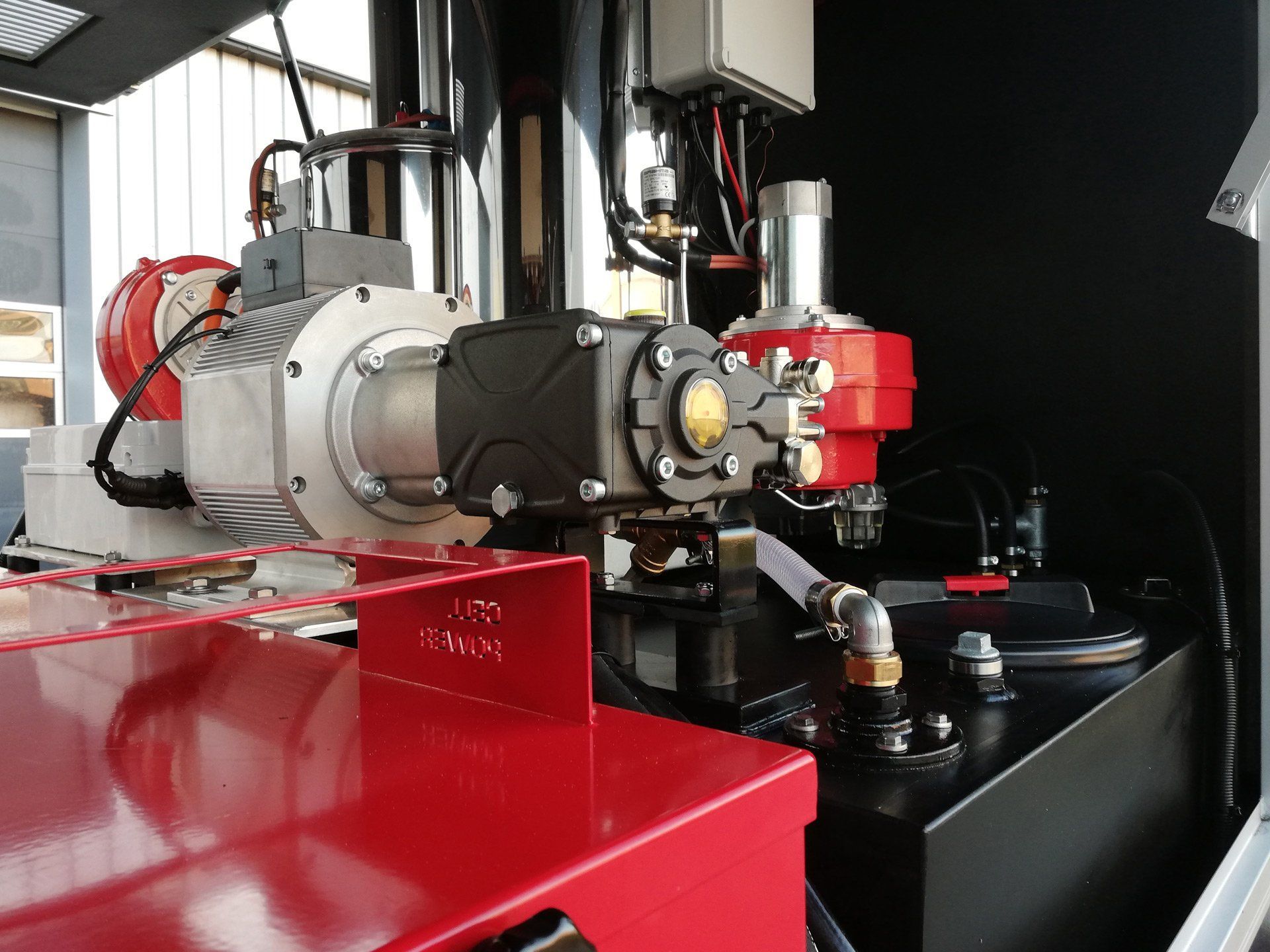

  • 100% Multi-fuel electric motor (PMS-IPM)
  • Electric motor power 15 kW
  • Number of high pressure pumps 1

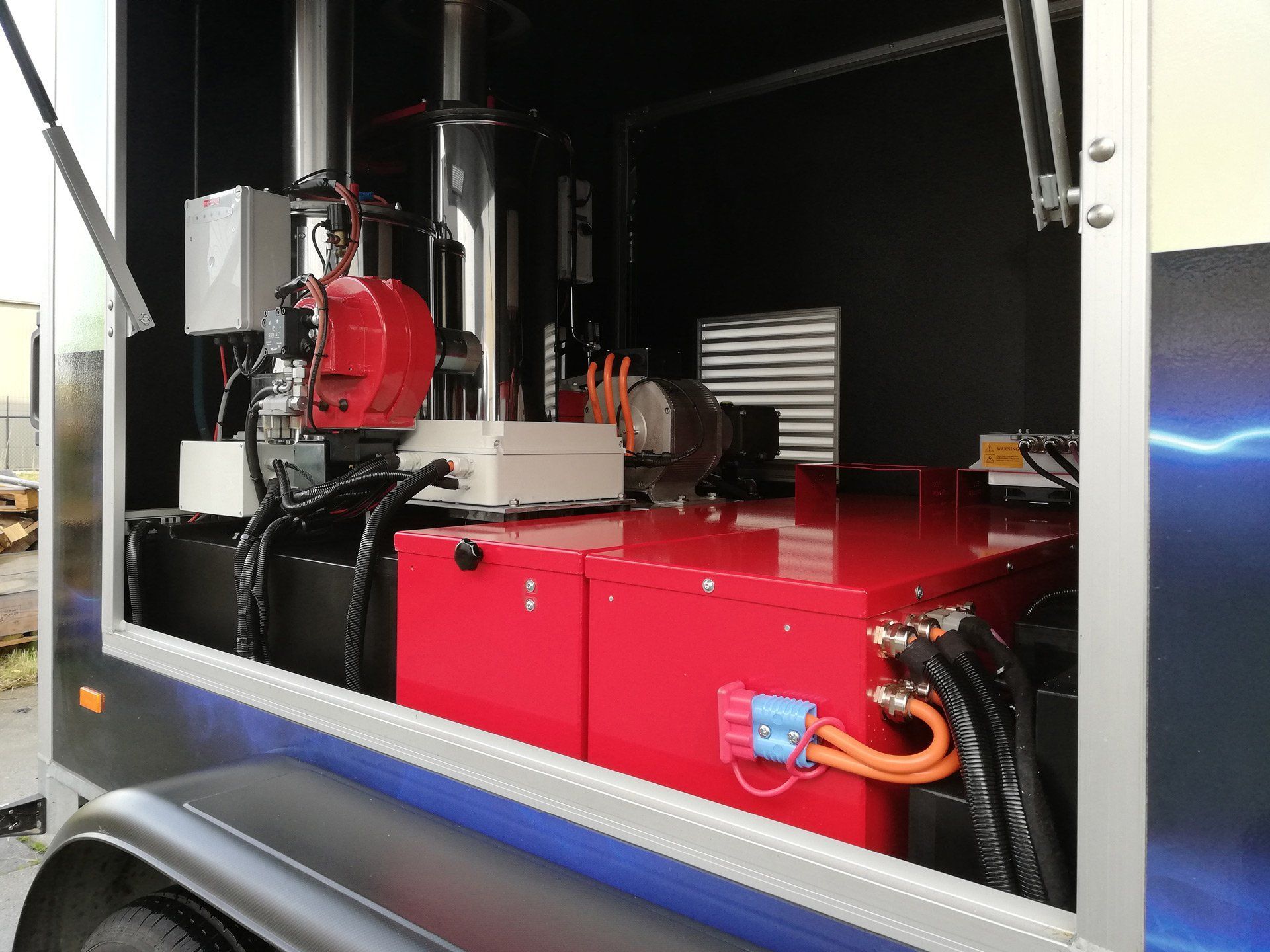

  • Lithium LiFoPO4 battery
  • Battery capacity 320 Ah or 400 Ah or 480 Ah
  • Fuel tank capacity 110 L
  • Water tank capacity 800 L
  • Stainless steel filling reel 45 meters 3/8 "high pressure hose
  • Stainless steel filling reel 25 meters 3/4" filling hose
  • Dimensions lenght including draw bar 350 x 170 (W) x 170 (H) cm
  • Registererd weight 2000 kg
  • Working time without intermediate recharging 6 - 16 hours (depending on the chosen working mode)

  • High-pressure trailer-E 200/21: Electric / battery 320Ah (working time 4-6h)
  • High-pressure trailer-E 200/21: Electric / battery 400Ah (working time 5-8h)
  • High-pressure trailer-E 200/21: Electric / battery 480Ah (working time 6-9h)

  • Fleet management module
  • Solar panel
  • Powerbank 230 V / 3000 W (2x 230V 16 Ah)

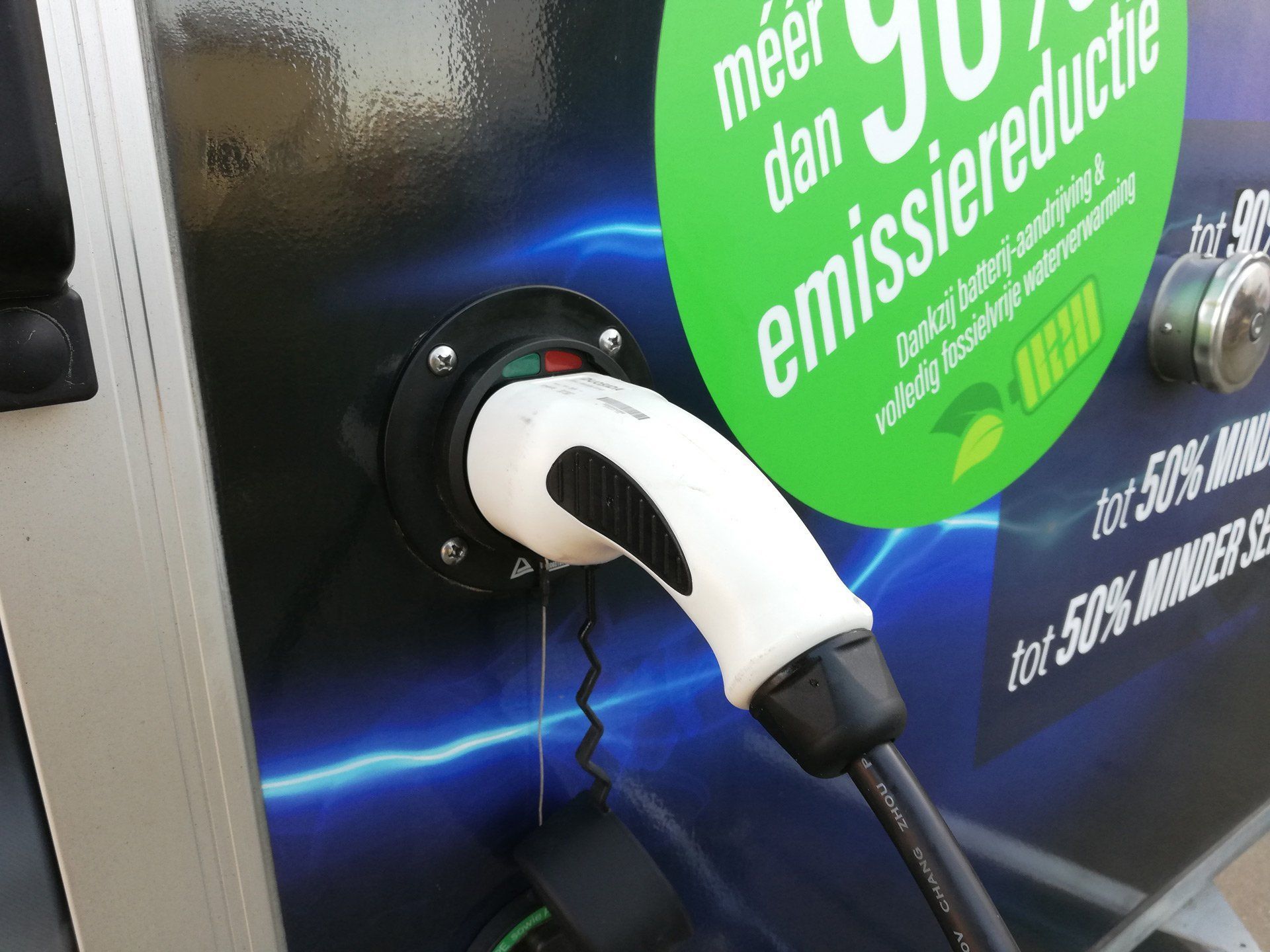

  • EV charging point module

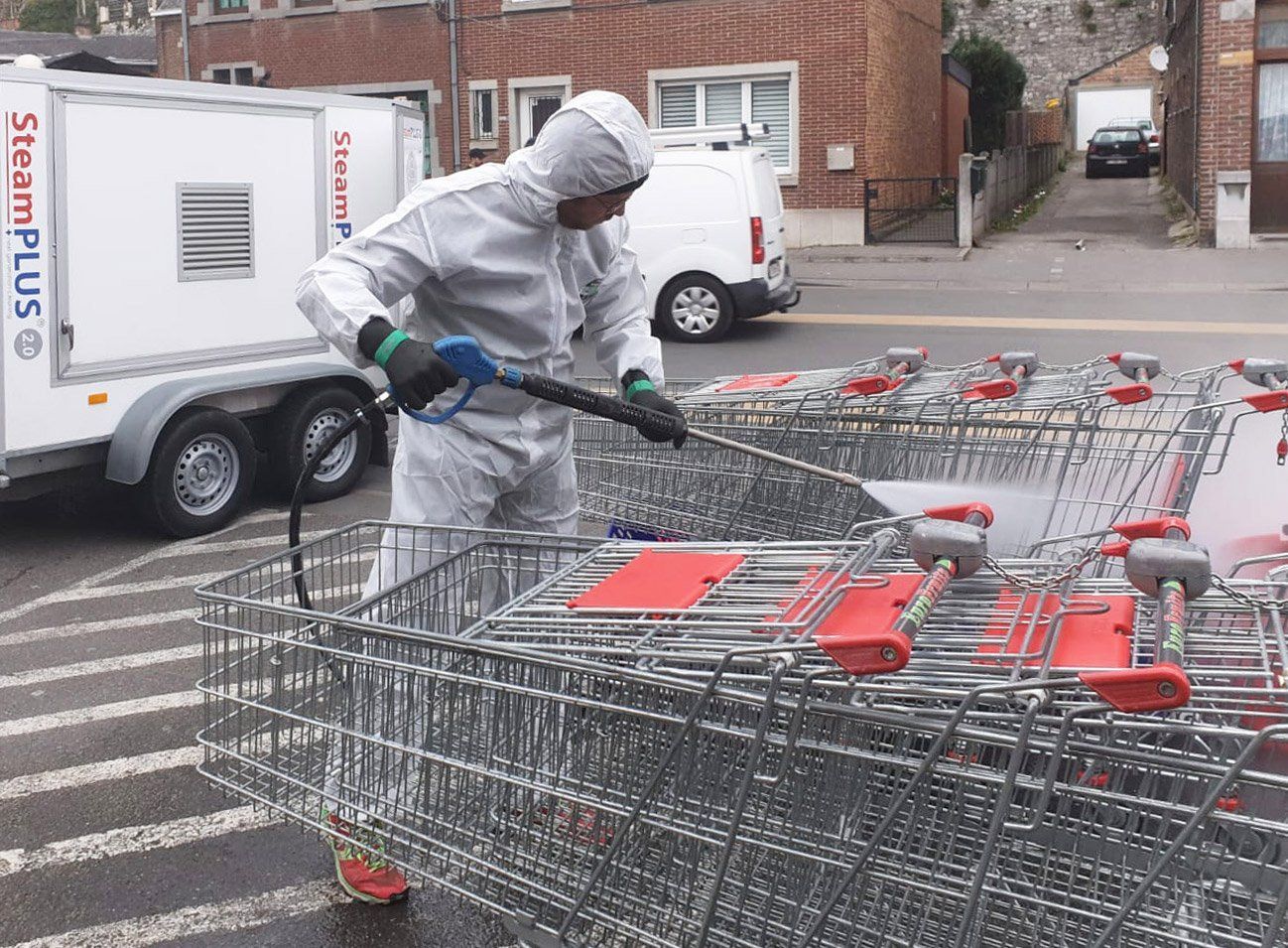

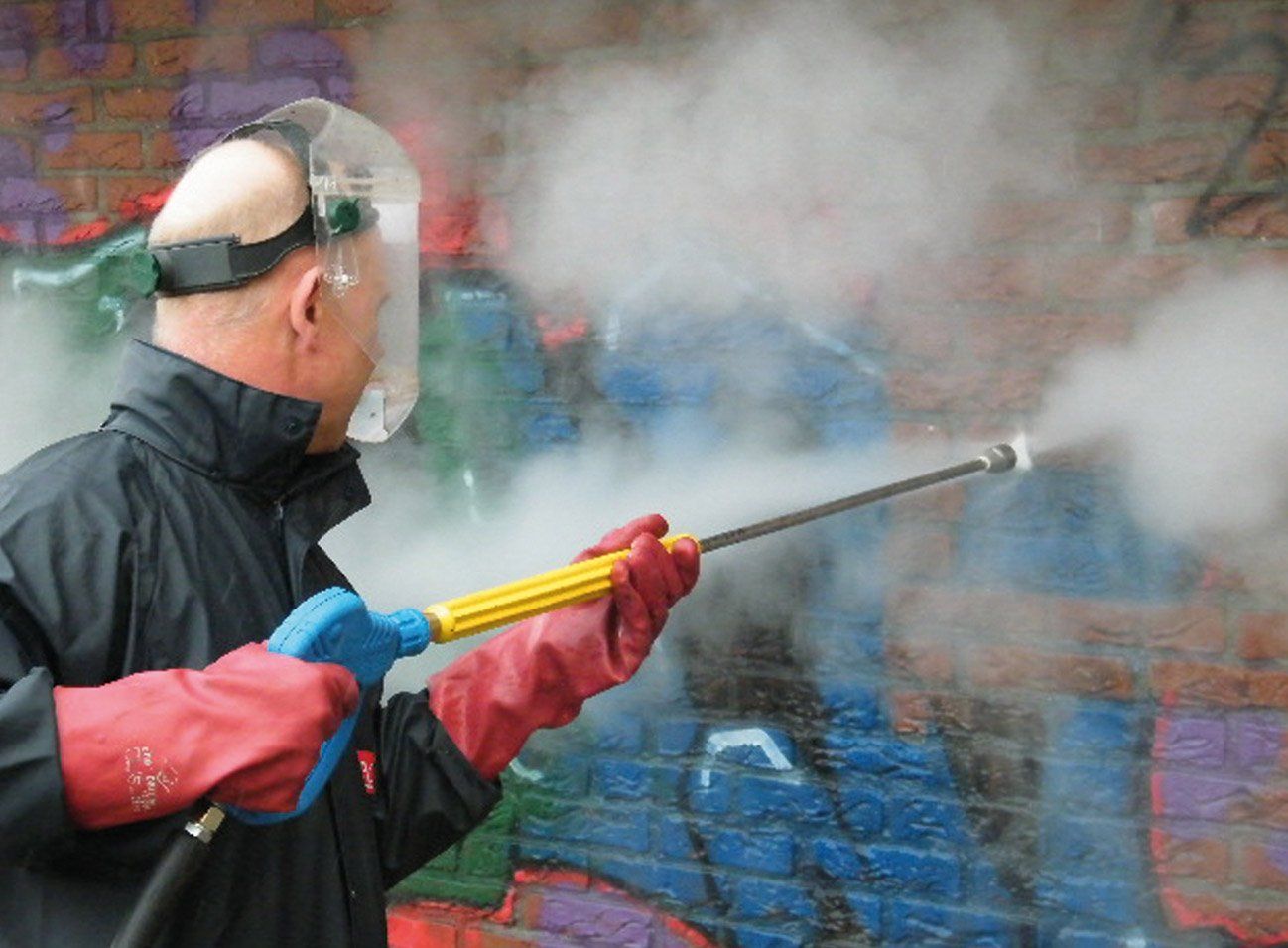

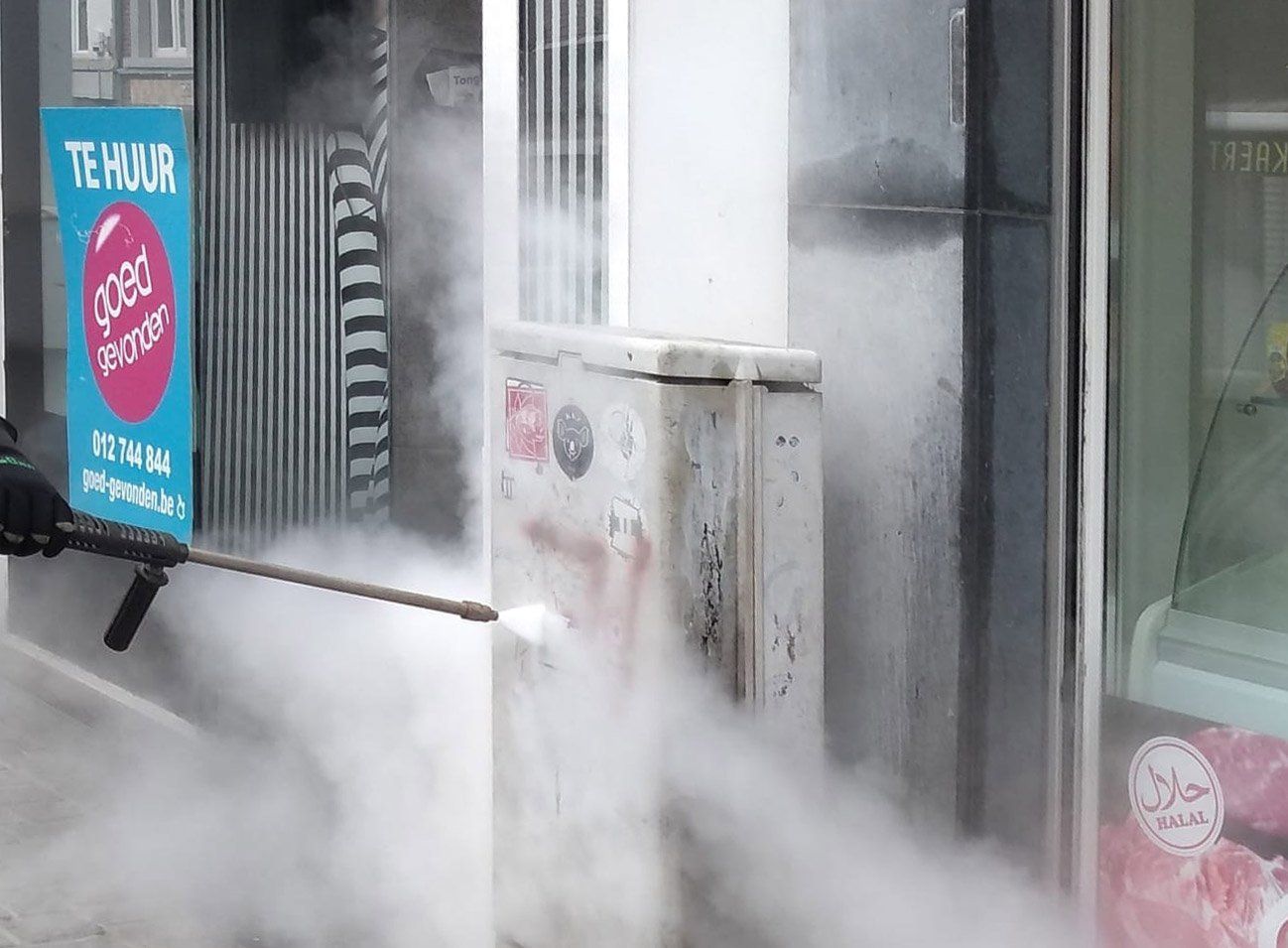

  • SteamPLUS: high-pressure / steam function (250 bar, 150°C)
  • AquaPLUS: surface cleaning technique based on water / steam
  • WeedPLUS: hot water weed control function

  • SteamPLUS 2.0: high-pressure / steam function (250 bar, 150°C)
  • AquaPLUS: surface cleaning technique based on water / steam
  • WeedPLUS: hot water weed control function
  • Solar panels on roof
  • Tap for washing hands, connecting hose etc. (incl. feed pump: 3 bar, 20 L/min)
  • Roof racks
  • Integrated aggregate 240V/ 4 kW  ( max. 6 Kw)
  • Anti calc system (with 12V dosing pump and reservoir 5 ltr.)
  • Extra sound insulation (inside trailer)
  • Flash lights (LED)
  • Working light (LED)
  • Taillight protectors
  • Remote controle (emergency stop)
  • Stainless steel reel with 100 mtr. high-pressure hose (â…œ”, double steel inlay)
  • Backwashing system (for water saving during heating up)
  • Shut-off valve for emptying / rinsing the water tank
  • Trailer painted/wrapped in a different colour
  • SIR approval

  • Modular battery system

    •  High-pressure trailer-E 250/15: Electric / battery 320Ah (working time 4-6h)

    •  High-pressure trailer-E 250/15: Electric / battery 400Ah (working time 5-8h)

    •  High-pressure trailer-E 250/15: Electric / battery 480Ah (working time 6-9h)

  • Technical options

    •  SteamPLUS: high-pressure / steam function (250 bar, 150°C)

    •  AquaPLUS: surface cleaning technique based on water / steam

    •  WeedPLUS: hot water weed control function

  • Frequently chosen options

    •  SteamPLUS: high-pressure / steam function (250 bar, 150°C)

    • <a value="en/aquaplus" label="" type="page" href="/en/aquaplus" data-runtime-url="/en/aquaplus"> AquaPLUS: surface cleaning technique based on water / steam

    •  WeedPLUS: hot water weed control function

    •  Solar panels on roof

    •  Tap for washing hands, connecting hose etc. (incl. feed pump: 3 bar, 20 L/min)

    •  Roof racks

    •  Integrated aggregate 240V/ 4 kW  ( max. 6 Kw)

    •  Anti calc system (with 12V dosing pump and reservoir 5 ltr.)

    •  Extra sound insulation (inside trailer)

    •  Flash lights (LED)

    • Working light (LED)

    • Taillight protectors

    •  Remote controle (emergency stop)

    • Stainless steel reel with 100 mtr. high-pressure hose (â…œ”, double steel inlay)

    •  Backwashing system (for water saving during heating up)

    •  Shut-off valve for emptying / rinsing the water tank

    • Trailer painted/wrapped in a different colour

    •  SIR approval

This High-pressure trailer is also available in the following version:

Meclean electrical powered high-pressure trailer HDTE 250/15

HIGH-PRESSURE TRAILER HDTE 250/15

More info
